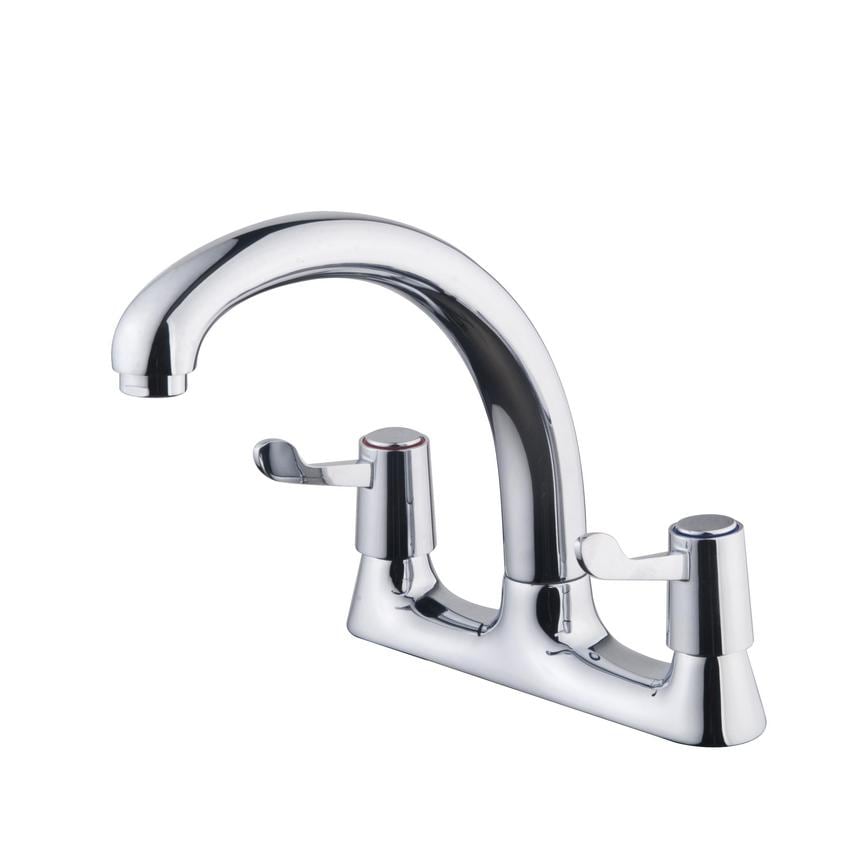

Read this first: this is a two-hole deck tap, not a monobloc. It mounts across two existing tap holes at 220mm centres — the footprint is 220mm x 42mm — with a lever over each hole and the swan neck spout in the middle. If your sink or worktop has a single tap hole, this tap will not fit it, and you want a monobloc instead: the Rienza TAP3545 gives you the same two-lever arrangement on one hole. If you are replacing an old two-hole pillar set and want to keep the holes you have, this is exactly the tap for the job, and it is the cheapest way to do it in the Howdens range.
It will run on almost any water system. Rated 0.2-5 bar — the lowest starting pressure of any tap we stock — and classed by Howdens as suitable for low to high pressure systems. It is a genuine answer for an old gravity-fed system with a tank in the loft, which is often exactly what is behind a two-hole sink.
The plumbing is different from a monobloc, so check these. The connection is a ½" BSP male thread with fixed inlets, not flexi tails — so the tap does not flex to meet your pipework and the holes need to line up. Maximum sink and worktop thickness is 38mm, the tightest in our range, so measure the deck of a thick composite sink before ordering. All fixings and the instruction manual are supplied. The aerator is a replaceable Neoperl honeycomb insert and the valve is a ceramic disc cartridge.
A note on the specification. Howdens' own page describes this as a "dual flow" design while its specification table states Flow Type: Single Flow. We have followed the specification and reproduced it verbatim below — the hot and cold are mixed and delivered through the single spout. If independent hot and cold outlets are what you need, this is not the tap.
Why you cannot buy this from Howdens yourself. Howdens supply the trade only — no trade account, no purchase, and no published prices. We hold a trade account, so we can supply the same Howdens-sourced tap direct to you at a normal retail price, with no account and no minimum order.
Specification
- Aerator Type: Replaceable Aerator
- Collection: Deck
- Colour Description: Chrome
- Connection Type: ½" BSP Male Thread
- Finish: Polished
- Flow Type: Single Flow
- Handle Type: Dual Lever
- Model Number: TAP9016
- Pressure Suitability: Suitable for Low to High Pressure Systems
- Product Type: Mixer
- Shape: Swan Neck
- Spout Type: Swivel
- Supplied With: Fixings, Instruction Manual
- Tap Turn Operation: ¼ Turn Lever
- Tap Valve: Ceramic Disc Cartridge
- Water Flow Type: Neoperl Honeycomb
Measurements
- Height: 217mm
- Depth: 237mm
- Water Pressure Range: 0.2-5bar
- Weight (Without Packaging): 1.301kg
Howdens do not publish a spout reach figure for this tap, so we have not quoted one.
Installation
- Mount Type: Surface Mounted
- Tap Footprint: 220mm x 42mm
- Maximum Sink and Worktop Thickness: 38mm
- Tail Pipe Type: Fixed Inlets
Guarantee and accreditations
- 5 Year Manufacturer's Guarantee
- 1 Year Guarantee Against Surface Finish
- Accreditations: CE Marked, WRAS Approved, Water Supply (Water Fittings) Regulations 1999
